Gear Rolling Tester
Model : DF-10 Series[Double Flank]

【Windows 7(Seven), XP Compatible, Data Processing software, Model:NiTM-DF10/TMX-1 Ver.2.1.2 & 3.0.0.】
Under Code of inspection practice - ISO TR 10064–2:1996(E)

Fine pitch & Hi-precision plastic &
From Module 0.1 up to module: 1.6 (DP254 to 16)
Gear diameter : φ1.5mm ~ φ150mm <Option :φ150 - 250mm>
Features of New DF-10 Series : DF-10/SR DF-10/TR & DF-10/AX
For measuring Spur & Helical, and also Worm, Internal,
Bevel, rack gears By additional mechanical units and software
‘Test radius’ measurement is sophisticated features and
more comfortable operation also for larger gears
Master gear is rotated with variable speed controlled with DC motor
Languages: English, Chinese, Japanese

Gear Rolling Tester

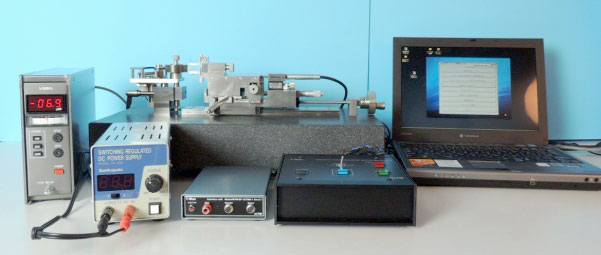

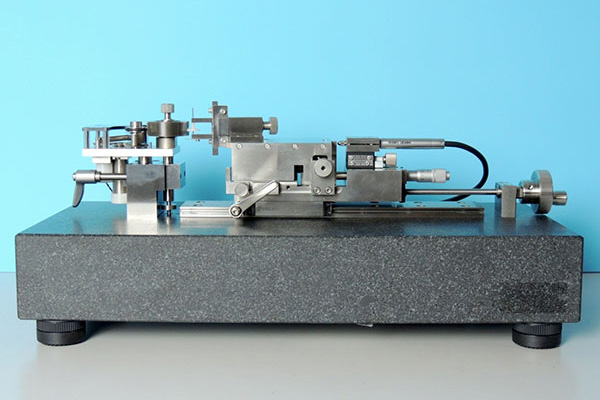

DF-10/SR
DF-10/ SR <Single-Roller Drive>
Master gear – Outside drive

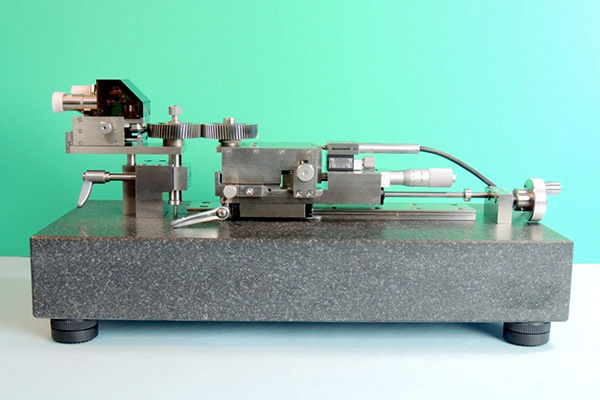

DF-10/TR
DF-10/ TR <Twin-Roller Drive>
Master gear – Outside dive

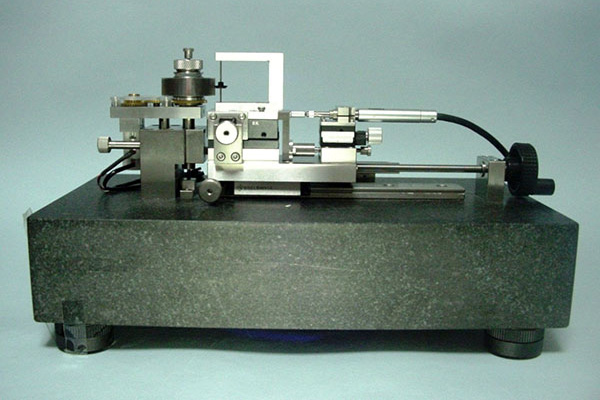

DF-10/AX
DF-10/ AX <Axial-shaft Drive>
Master gear – Axial rotation

The most recent version of Adobe Flash Player is necessary for the contents of this page.

Adobe Flash Player を取得


Movie for DF-10/SR operation

※MG=Master Gear

※Click the photos for enlarged photos and click Model No. for the details



Peripheral equipment

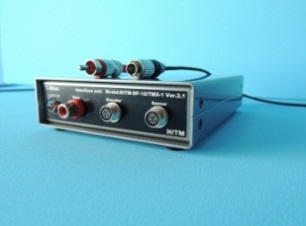

Interface unit

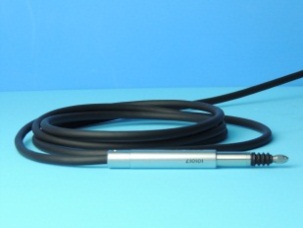

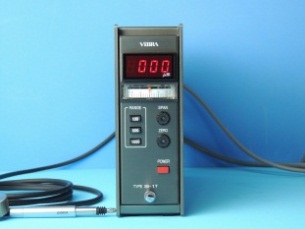

Amplifier unit Measuring sensor
Interface unit
Amplifier unit Measuring sensor

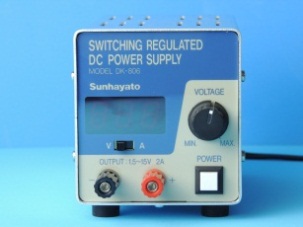

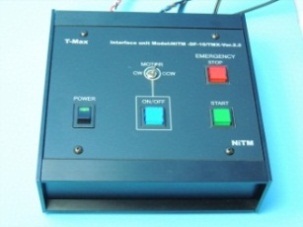

R.P.M controller Remote control unit
R.P.M controller Remote control unit
